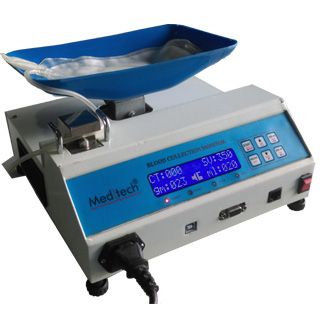

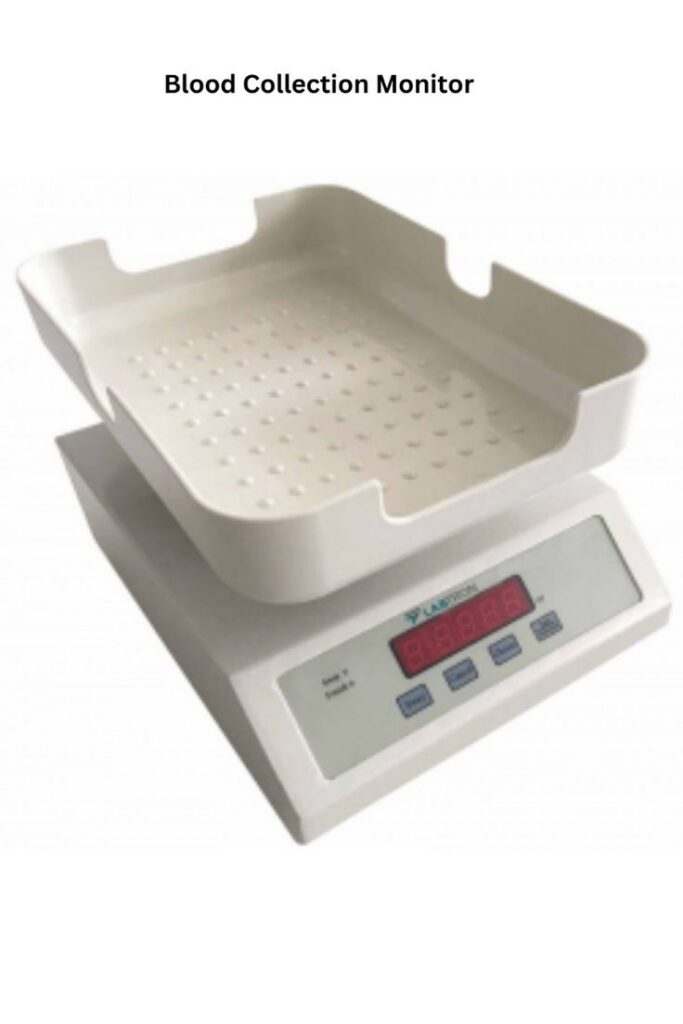

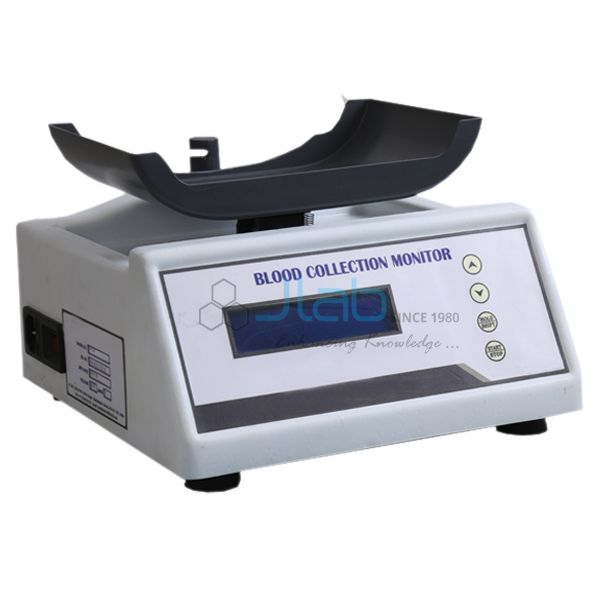

Blood Collection Monitor

About Blood Collection Monitor

The Blood Collection Monitor is a highly reliable, microprocessor-controlled device designed to monitor and control the blood donation process. It ensures accurate collection volume, provides gentle mixing to prevent clotting, and includes automatic clamp and alarm features to ensure donor safety and high-quality blood products.

Technical Specifications

• Capacity: Up to 999 ml
• Accuracy: ±1% of set volume
• Mixing Speed: 12-16 rpm (adjustable)
• Display: Digital LCD with backlight
• Auto Clamp: Automatic tube clamping at set volume
• Alarm: Visual and audible alerts on completion or error
• Memory: Last set volume recall
• Power Supply: 220V ±10%, 50Hz
• Battery Backup: Optional (for mobile use)
• Weight: Lightweight, portable design

Key Features

• Accurate blood volume measurement with ±1% precision
• Automatic tube clamping to stop blood flow at set volume
• Gentle rocking motion ensures consistent mixing
• LCD screen displays real-time collection data
• Audio and visual alarms for completion, flow error, or pause
• Compact and lightweight design, ideal for mobile donation camps
• Battery backup option available for outdoor use
• Simple operation with easy-to-use controls
• Durable, maintenance-free design
• Compliance with WHO, CE, FDA, and GMP standards

Applications

The Blood Collection Monitor is widely used in:

• Blood Banks
• Hospitals
• Mobile Blood Donation Camps
• Transfusion Centers
• Research Laboratories
